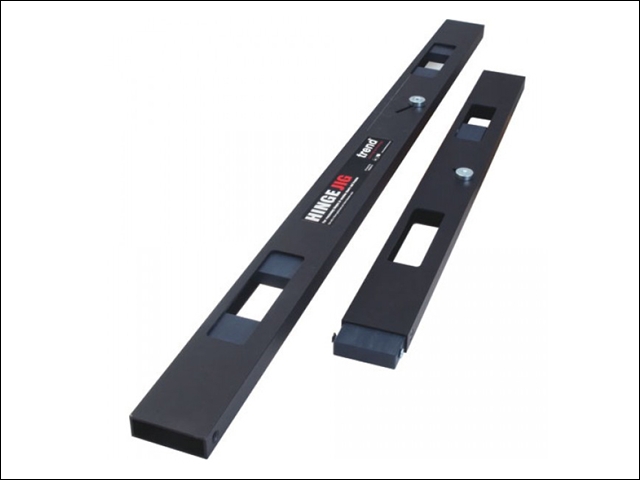

A 2-part hinge jig, portable template set designed for recessing hinges in wooden doors and frames.It is easy-to-use with minimal setting-up time, completing the job both accurately and quickly.Used on-site and in joinery shops to increase productivity with excellent results.Four apertures for fire door requirements.No need for marking out in the conventional way.Quick and simple to set-up as the hinge is used as the pattern.Clean and accurate recesses are achieved every time. Suitable for timber based doors and square butt hinges.Use with a light-duty router with 1/4 inch collet.Long reach router cutter required, 12 mm diameter with 70 mm overall length.Angled position slots to prevent creep.
Hinge sizes possible: Length min: 2 5/8 in (67 mm). Length max :5 in (127 mm). Width min :3/8 in (9.5 mm). Width max: 1 3/8 in (35 mm). Door sizes possible: Height min: 6 ft 5 in (1955 mm). Height max: 6 ft 10 in (2100 mm). Thickness min: 5/8 in (16 mm).
